PRO-Craft Dental Lab's Bar and Substructure

Pro-Craft Dental Lab Implant Products

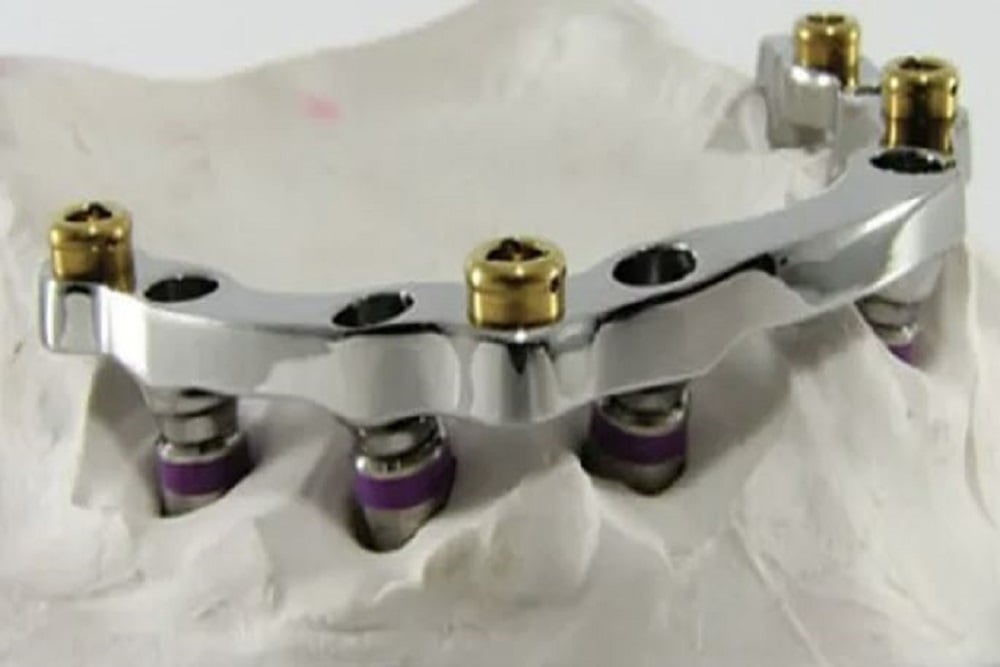

Bar & Substructure

Titanium and chrome bars and substructures will elevate your dental implant restorations to a new level.

At PRO-Craft we gold an pink anodize all of our bars and substructures for maximum esthetics so there is no discoloration at the gingival or show through in the restoration, and it's all done for free!

  • No porosity like found in traditional cast bars
  • When using titanium bars you eliminate the use of  conventional implant housing that can come loose and have to be re-bonded

Hader Bar

Hader Bar and clip attachments significantly improve the level of satisfaction of denture-wearing patients by enhancing the retention and stability of the prosthesis. The primary requirement for the use of bar attachments is the availability of sufficient vertical and buccolingual space for the proper placement of the bar, sleeves, teeth arrangement and sufficient thickness of acrylic denture base to minimize incidence of denture fracture in the area of bar assembly.

Features and benefits of Hader Bar and clip attachment retained mandibular complete denture:

  • Hader Bar and clip attachments significantly improve the level of satisfaction of denture-wearing patients by enhancing the retention and stability of the prosthesis.
  • These attachments have been most commonly used for connecting the prosthesis to implants, but they can be effectively used to retain tooth-supported prosthesis as well.
  • Even distribution of forces to the abutments and supporting areas.
  • Guiding the prosthesis into place
  • Improving the retention, stability, support and comfort of the patient


  • Most commonly used for connecting the prosthesis to implants
  • Can be effectively used to retain tooth-supported prosthesis
  • Splinting the abutments together

Bar & Substructure Specifications


  • Can be designed with extensions that follow the gingival profile and to add additional strength to zirconia prosthetics
  • Can include a combination of various attachment options
  • Can be standard or custom shaped
  • Include a full range of implant suprastructures for all major dental implant systems
  • Milled from solid blocks of titanium or cobalt-chrome to eliminate the potential for porous material
  • Are produced using the latest developments in world class production technologies
  • Supported by computer-based industrial and medical-device expertise


Removable prostheses



Material Composition

Titanium or cobalt-chrome

Lab Processing Time

7 working days

Available Anodize Colors

Gold & Pink

ISO 6872:2015 Classification

Specifies the requirements and the corresponding test methods for dental ceramic materials for fixed all-ceramic and metal-ceramic restorations and prostheses.

Preparation Guide


Founder Greg Schubert talks about the story of PRO-Craft Dental Lab

All-Z Plus Implant Prosthetic (All-On-4) combines the advantages of All-Z Plus solid zirconia with cutting edge implant technology.

PRO-Craft Dental Laboratory’s custom abutments are available in Titanium and Lava Zirconia. We fabricate both using CAD technology and customize all abutments to each patient’s individual dentition...

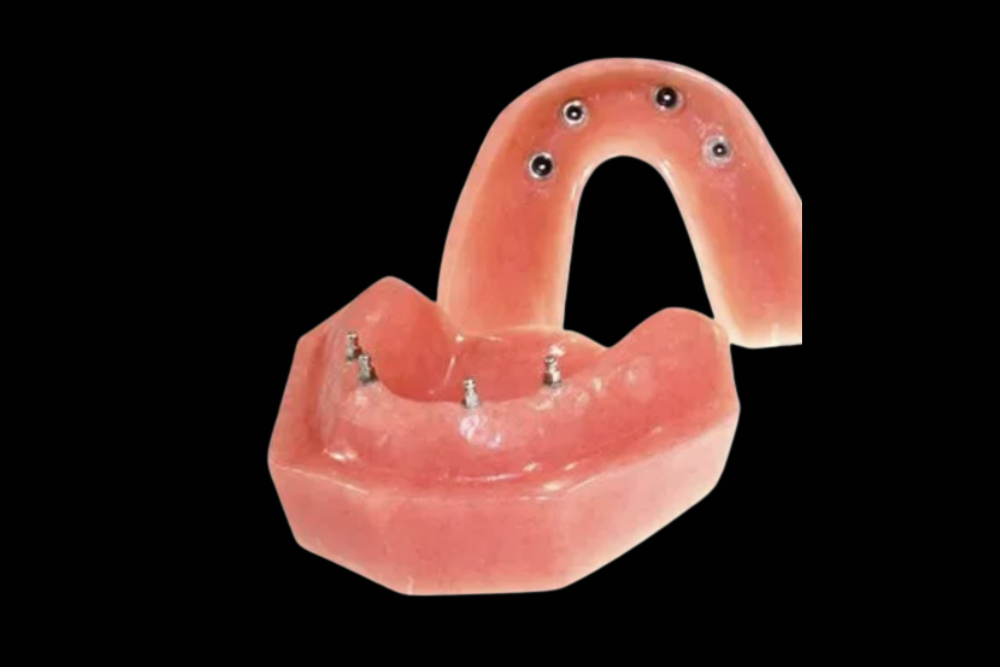

What exactly is a mini-implant? Mini implants are 1.8, 2.1, 2.4 or 2.9mm titanium alloy implants that act like the root of a tooth. Mini implant systems can work wonders by retrofitting patients'...
